Supermon Set-up Guide

Supermon is now setup from the Putty initial setup of your Node. Choose Item 9.

Choose item 9
Enter your Node number if it isn’t already there.
This is the confirmation screen, hit OK.
Enter your call sign if it isn’t there and hit OK.
Enter the name of the person you maintains your site, most likely it will be you.
Entr you City and State then hit OK.
Enter your zip code then hit enter.

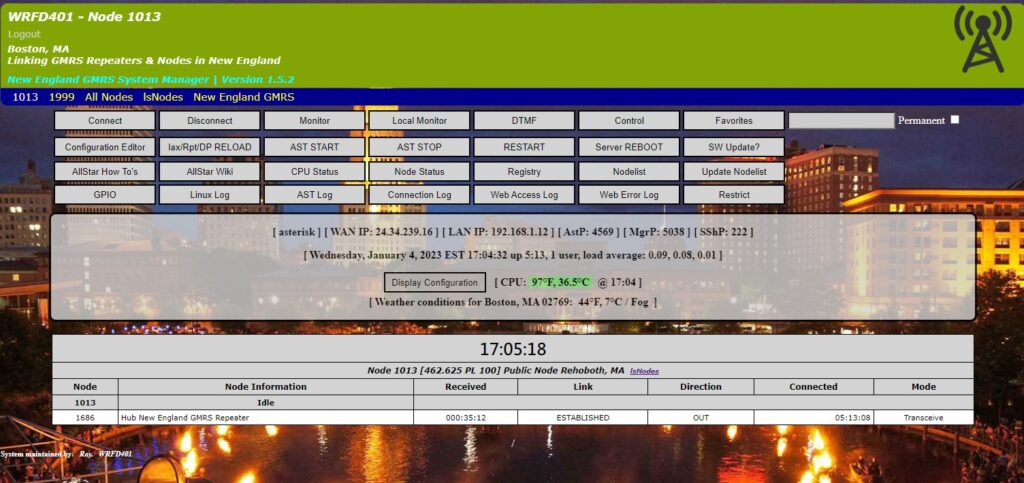

That’s it you are done. Enter http://[your nodes ip address]/supermon

The default user name is “admin” and the password is “raspberry”

Installation Notes

If you plan on allowing access to Supermon from the Internet, you will have to change the password.

You will have to log into your node and access the command line.
Enter the /etc/asterisk directory
cd /etc/asterisk
Edit the manager.conf file
nano manager.conf
Add a secure password where it shows ‘secret =’ under the [admin] stanza, for example:
secret = xxxxx
Enter you desired password in place of the xxxxx above.
In the stanza called “general” uncomment webenabled = yes.
Restart asterisk.

Create a password for you and possibly other users to login to Supermon Change to the Supermon directory if not already there. cd /srv/http/supermon Recommend removing any existing .htpasswd file – rm .htpasswd Add an htpasswd file htpasswd -cB .htpasswd (subsequent additional entries use just -B) Supply a password of your choice when prompted. is the login ID and can be any username you would like to assign; your callsign or admin for example. DO NOT enter the < or >. Do NOT use a ! (exclamation) in the password. You can have more than one login and password. If assigning additional passwords the ‘c’ create file switch must be dropped. In this case use:

htpasswd -B .htpasswd <userID>

To start Supermon in your browser enter your server’s IP address/supermon in the address bar.

If your servers IP address is then: supermon – assumes port 80

If you are using a different port – – where PORT = your port number.

Logging Configuration

In order for logging to work you must add the following statements to your /etc/asterisk/rpt.conf file for
smlogger to function.

connpgm=/usr/local/sbin/supermon/smlogger 1
discpgm=/usr/local/sbin/supermon/smlogger 0
These statements are added in the node section for EACH defined node on your Allstar server.
